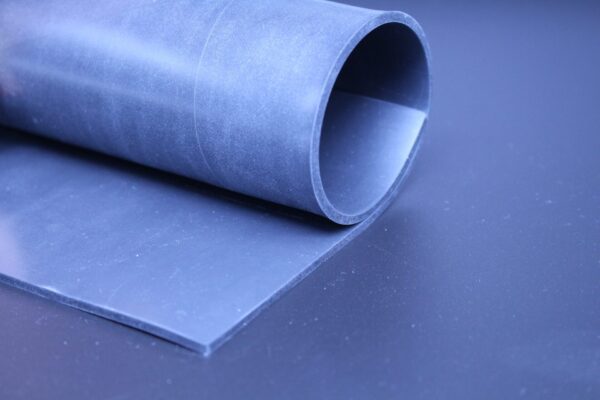

Metal Detectable Silicone Sheet
Metal detectable silicone rubber sheet, 60° shore A hardness. MVQ Metal Detectable sheeting allows fragments of failed seals and gaskets to be found safely and isolated.
Popular in many food processing and pharmaceutical applications for its FDA approval (making it suitable for direct food contact) and the ability to detect foreign particles in products easily.
This sheeting has good damping and mechanical properties, flexibility and elasticity and good resistance to high and low temperature (-60°C to 200°C).
MVQ metal detectable sheet also has excellent resistance to mildew and funghi, and resistance to UV ageing.
This sheeting is supplied in 1.2m x 1m sheets in thicknesses from 1mm to 6mm.
- Description
- Additional information
- Product Enquiry
Description
Property | Units | Typical Value | Test Method |
---|---|---|---|
Hardness | Shore A ±5 | 63° | ASTM D2240 DIN ISO 7619-1 |
Tensile Strength | Mpa | 8.0 | ISO 37 type 1 ASTM D412 die C DIN 53504 type S1 |
(PSI) | 1160 | ||
Elongation to Failure | % | 370 | ISO 37 type 1 ASTM D412 die C DIN 53504 type S1 |
Tear Strength | N/mm | 21 | ASTM D624 die B |
(lb./in.) | 120 | ||
Compression set 24 hrs @ 150°C | % | 11 | BS 903 pt A6 type B DIN/ISO 815 type B |
Compression set 22 hrs @ 300°C | % | 11 | ASTM D395 method B type 2 |
Magnetic Pull | mm | 7.3 | SEWI 700 |
Additional information
Color | Blue |
---|---|
Thickness | 0.5mm, 0.8mm, 1.0mm, 1.5mm, 2.0mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm, 8.0mm, 10.0mm |
