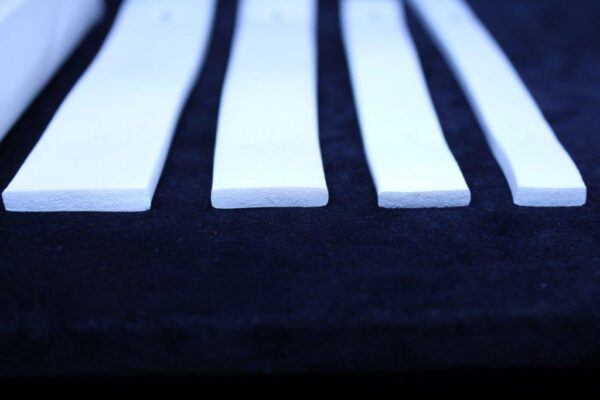

SIL16 Silicone Sponge slit Strip
Stocked in black, white and red oxide, SIL16 sponge strip is a medium density closed-cell silicone that is very popular in sealing applications, particularly where vibration dampening properties are required (such as lighting housing gaskets).
MVQ sponge strips are often used for sealing electrical enclosures, exterior light fittings and handheld instruments, protecting them from moisture and dust ingress.
This product is supplied slit from sheeting, with a skin on the top and bottom. SIL16 sponge strips are also available in an extruded format, with a skin on all four sides.
- Description
- Additional information
- Product Enquiry
Description
| Sheeting | SIL10 | SIL16 | SIL24 | SIL33 | |||
|---|---|---|---|---|---|---|---|
| Property | Units | Typical Value | Typical Value | Typical Value | Typical Value | Test Method | |
| Density * | kg.m³ lb.ft³ | 200 12.5 | 250 15.6 | 400 25 | 550 34.3 | BSENISO 845 ASTM D3574 | |
| Hardness ** | Shore OO Shore A | 35 ±5 <5 | 42 ±5 5 | 65 ±5 17 | 80 ±5 30 | ASTM D2240 | |
| Compression Stress 40% Strain *** | kPa PSI | 50 4.6 | 90 6.4 | 165 11.9 | 470 34.8 | BSENISO 3386 Part 1,2 ASTM D1056 | |
| Tensile Strenght | MPa PSI | 0.6 87 | 0.6 87 | 0.75 108 | 2.0 290 | BSENISO 1798 ASTM D412 | |
| Elongation to failure | % | 140 | 145 | 120 | 130 | BSENISO 1798 ASTM D412 | |
| Compression Set 50% Compression 24hrs Recovery, 22 hrs 70°C (158°F) | % | 15.0 | 12.0 | 10.0 | 9.5 | BSENISO 1856 | |
| Compression Set 50% Compression 24hrs Recovery, 22 hrs 100°C | % | 18.0 | 14.5 | 12.0 | 12.0 | BSENISO 1856 | |
| Water Absorption | % | <5 | <5 | <5 | 2 | ASTM D1056 | |
Additional information
| Color | Red Oxide, White, Black |
|---|---|
| Width | 10mm, 15mm, 20mm, 25mm, 30mm, 35mm, 40mm, 45mm, 50mm, 55mm, 60mm, 65mm, 70mm, 75mm, 80mm, 85mm, 90mm, 95mm, 100mm |
| Thickness | 1mm, 1.5mm, 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm |
| Adhesive Backing | Yes, No |
