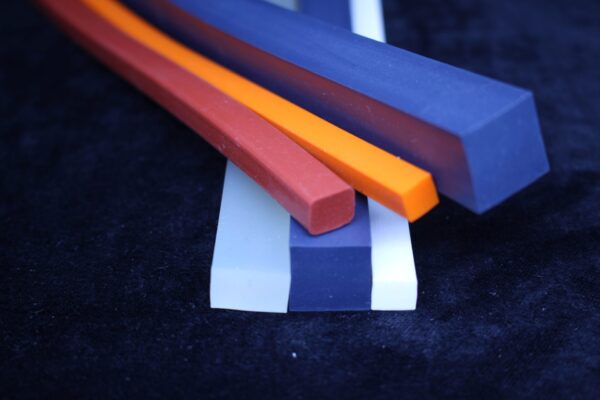

Silicone Rubber Square Section
Silicone rubber square section in 60° Shore A hardness. Excellent for applications requiring good sealing properties at high and low temperatures.
These square sections are suitable for use from -40°C up to +200°C with capabilities at 230°C intermittentl, can be increased ot 300°C with special additives.
Fully compliant to FDA 177.2600 and EC 1935/2004, making it suitable for applications requiring direct food contact. More colours and sizes are available on request.
- Description
- Additional information
- Product Enquiry
Description
- FDA § 177.2600 compliant
- BFR XV “Silicones” compliant
- Compliant to 1935/2004
- Usable in Dairy, Sanitary or Industrial Applications
Property | Condition | Curing Agent E | Curing Agent C1 | Method |
---|---|---|---|---|
Appearance | - | transparent | transparent | - |
Hardness Shore A | - | 60° ± 5 | 60° ± 5 | DIN ISO 48-4 |
Density | - | 1.15 g/cm³ | 1.15 g/cm³ | DIN EN ISO 1183-1 A |
Tensile strength | - | 11.0 N/mm² | 11.0 N/mm² | ISO 37 type 1 |
Elongation at break | - | 440 % | 530 % | ISO 37 type 1 |
Tear strength | - | 24 N/mm | 26 N/mm | ASTM D 624 B |
Compression Set[1] | 22 h | 175 °C | 31 % | 16 % | - |
Rebound resilience | - | 59 % | 56 % | ISO 4662 |
Cure conditions (post-cured 4 h / 200 °C):
1.5 % ELASTOSIL® AUX Crosslinker E (50% paste of bis-(2,4-dichlorobenzoyl)-peroxide in silicone fluid); 10 min / 135°C in press
0.7 % ELASTOSIL® AUX Crosslinker C1 (Dicumylperoxide); 15 min /165 °C in press
Additional information
Dimensions | N/A |
---|---|
Color | White |
Size (Width x Thickness) | 3.0mm x 3.0mm, 4.0mm x 4.0mm, 5.0mm x 5.0mm, 6.0mm x 6.0mm, 8.0mm x 8.0mm, 10.0mm x 10.0mm, 12.0mm x 12.0mm, 12.7mm x 12.7mm, 15.0mm x 15.0mm, 16.0mm x 16.0mm, 19.1mm x 19.1mm, 20.0mm x 20.0mm, 25.0mm x 25.0mm |
Length | 10 |
