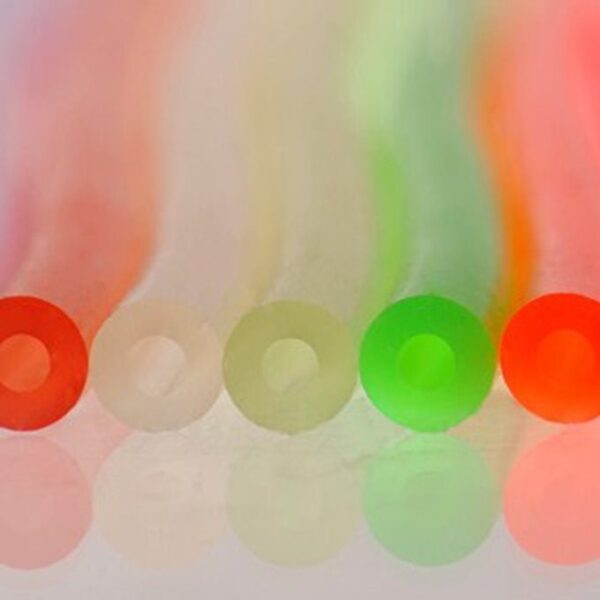

Silicone Fuel Tubing
These tubes are specially made for optical applications such as in visible cooling systems or in radio controlled car models. Some sizes are stocked as standard, should you need special sizes feel free to enquire.
- Description
- Additional information
- Product Enquiry
Description
| Property | Condition | Curing Agent E | Curing Agent C1 | Method |
|---|---|---|---|---|
| Appearance | - | transparent | transparent | - |
| Hardness Shore A | - | 60° ± 5 | 60° ± 5 | DIN ISO 48-4 |
| Density | - | 1.15 g/cm³ | 1.15 g/cm³ | DIN EN ISO 1183-1 A |
| Tensile strength | - | 11.0 N/mm² | 11.0 N/mm² | ISO 37 type 1 |
| Elongation at break | - | 440 % | 530 % | ISO 37 type 1 |
| Tear strength | - | 24 N/mm | 26 N/mm | ASTM D 624 B |
| Compression Set[1] | 22 h | 175 °C | 31 % | 16 % | - |
| Rebound resilience | - | 59 % | 56 % | ISO 4662 |
Cure conditions (post-cured 4 h / 200 °C):
1.5 % ELASTOSIL® AUX Crosslinker E (50% paste of bis-(2,4-dichlorobenzoyl)-peroxide in silicone fluid); 10 min / 135°C in press
0.7 % ELASTOSIL® AUX Crosslinker C1 (Dicumylperoxide); 15 min /165 °C in press
Additional information
| Color | Blue Tint, Fluorescent Green, Fluorescent Orange, Fluorescent Pink, Fluorescent Yellow, Green Tint, Purple Tint, Red Tint, Translucent |
|---|
