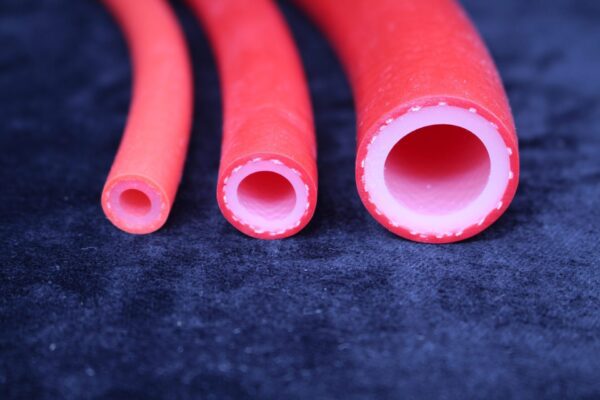

Peroxide Cured Braided Hose

1 ply polyester braided hose produced in 70° shore A, peroxide cured silicone.

This economical industrial grade product has excellent performance characteristics and is BGVV, FDA, USP Class VI and WRAS compliant. These braided hoses are available in inner diameters of 3mm to 38mm with walls from 2.5mm to 7mm.

This product is currently out of stock and unavailable.


Chemical Performance
Film Joining
Fire Performance
Gas Permeability
Selecting The Right Hardness
High Temperature Performance
Low Temperature Performance
I P Ratings
Profile Selection
LED Light Diffusion Products
Adhesive Bonding Guide
U Profile fixing instructions
Shelf life
Silex Printing Capabilites
Steam Resistance
Thermal Conductivity
Weathering and UV influences
Platinum vs Peroxide
Silicone Surface Technology
Formulated to meet
Laser Cutting


We recommend customers use a 3 : 1 safety factor
The above information is a guide only, customers are requested to perform their own tests subject to media and
conditions to ensure product is fit for purpose.

Shore Hardness: 70º shore A ± 5º
Tensile Strength: 8,5MPS
Elongation 280%
Tear Strength: 18KN
Temperature Resistance: – 50ºc to + 170ºc
Compression Set: 27%


Additional information


Blue, Red

Size (ID x Wall)

3.0mm x 2.5mm, 4.0mm x 2.5mm, 5.0mm x 3.0mm, 6.0mm x 3.0mm, 8.0mm x 3.2/3.5mm, 10.0mm x 3.5/4.0mm, 12.0mm x 3.5/4.0mm, 14.0mm x 4.0/4.5mm, 16.0mm x 4.0/4.5mm, 18.0mm x 4.0/4.5mm, 20.0mm x 5.0/5.5mm, 25.0mm x 6.0mm, 32.0mm x 7.0mm, 38.0mm x 7.0mm


1, 5, 10
