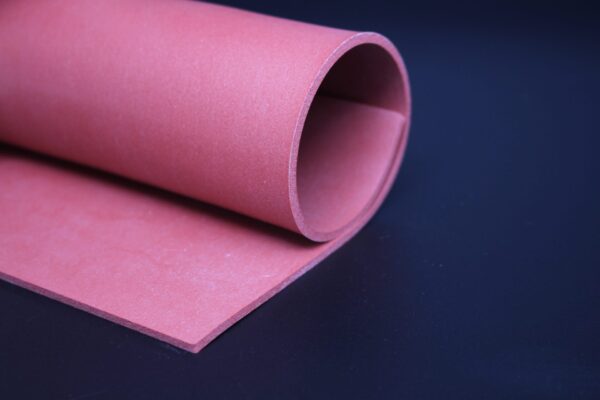

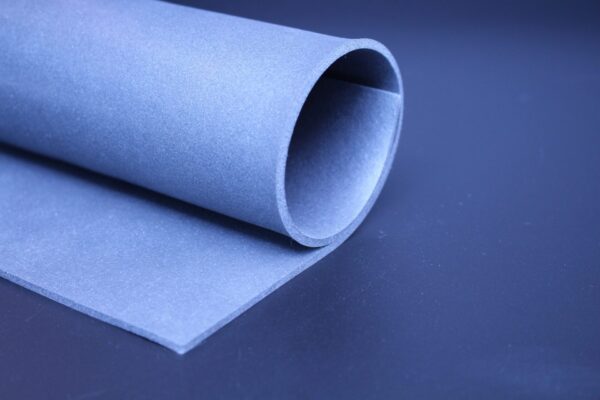

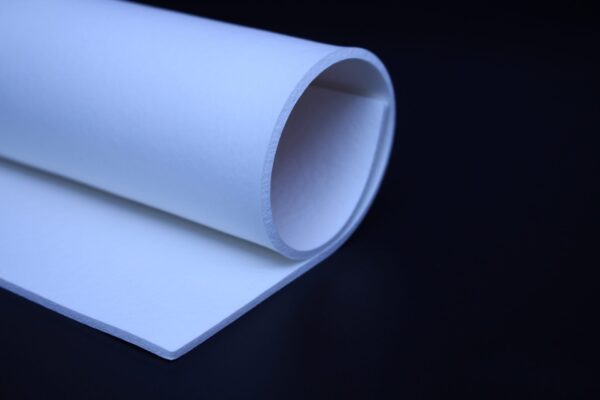

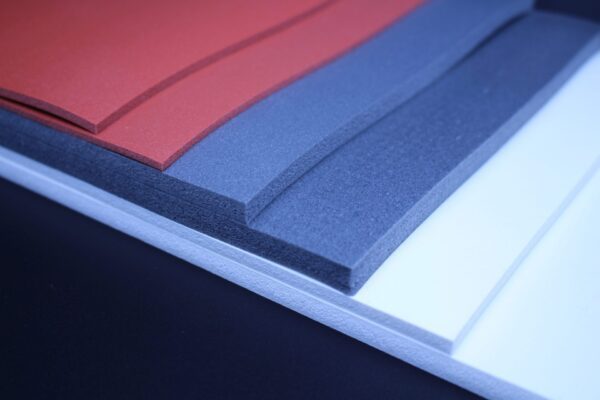

SIL16 Silicone Sponge Sheet
Medium density (250kg/m3) silicone rubber sponge sheeting.
Suitable where a soft, easily pliable rubber is required. These sheets perform at temperatures from -60°C to + 230°C, +250°C intermittently. MVQ SIL16 meets the flammability requirements of FAR 25/JAR25/CS 25 Appendix F, Part 1 (a)(1)(iv) and (a)(1)(v) horizontal flammability, is REACH and ROHS compliant.
This product is supplied in 1m wide sheets, or rolls of up to 10m.
- Description
- Additional information
- Product Enquiry
Description
| Sheeting | SIL10 | SIL16 | SIL24 | SIL33 | ||
|---|---|---|---|---|---|---|
| Property | Units | Typical Value | Typical Value | Typical Value | Typical Value | Test Method |
| Density * | kg.m³ lb.ft³ | 200 12.5 | 250 15.6 | 400 25 | 550 34.3 | BSENISO 845 ASTM D3574 |
| Hardness ** | Shore OO Shore A | 35 ±5 <5 | 42 ±5 5 | 65 ±5 17 | 80 ±5 30 | ASTM D2240 |
| Compression Stress 40% Strain *** | kPa PSI | 50 4.6 | 90 6.4 | 165 11.9 | 470 34.8 | BSENISO 3386 Part 1,2 ASTM D1056 |
| Tensile Strenght | MPa PSI | 0.6 87 | 0.6 87 | 0.75 108 | 2.0 290 | BSENISO 1798 ASTM D412 |
| Elongation to failure | % | 140 | 145 | 120 | 130 | BSENISO 1798 ASTM D412 |
| Compression Set 50% Compression 24hrs Recovery, 22 hrs 70°C (158°F) | % | 15.0 | 12.0 | 10.0 | 9.5 | BSENISO 1856 |
| Compression Set 50% Compression 24hrs Recovery, 22 hrs 100°C | % | 18.0 | 14.5 | 12.0 | 12.0 | BSENISO 1856 |
| Water Absorption | % | <5 | <5 | <5 | 2 | ASTM D1056 |
Additional information
| Color | Red Oxide, White, Black |
|---|---|
| Thickness | 1.6mm, 2.0mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm, 8.0mm, 10.0mm, 12.0mm, 15.0mm, 20.0mm, 25.0mm |
