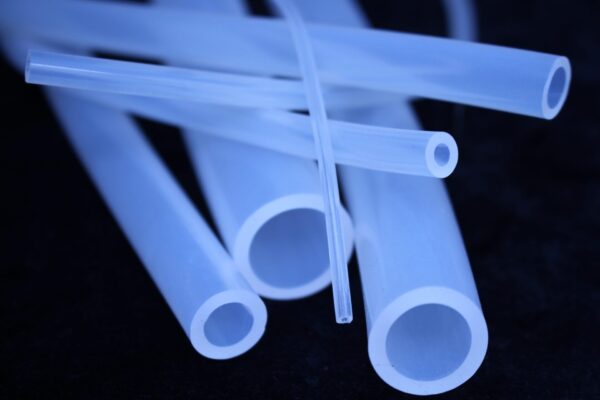

Platinum Cured Silicone Rubber Tubing 60° Shore
Platinum cured silicones offer a number of advantages over conventional peroxide cured silicones. Favoured by the food and beverage industry, they are non-yellowing with no peroxide by-products, high tear strength with excellent clarity and high gloss finish.
These tubes are ideal for peristaltic pumps, boasting an extended life for this application. MVQ platinum cured silicone tube is FDA and Bfr compliant, with full WRAS approval for hot and cold water. NSF approved tubing is also available by special order.
- Description
- Additional information
- Product Enquiry
Description
- FDA, BFR and 1935/2004 compliant materials used
- Able to meet a variety of Water regulations (please contact for more Info)
- Non yellowing, high tear resistance platinum cured Compound optimal for food applications
| Property | Test Method | Unit | NGP60 |
|---|---|---|---|
| Hardness | D53505 | Shore A | 60° |
| Appearance | Translucent | ||
| Specific Gravity | DIN EN ISO 1183-1A | g/cm³ | 1.15 |
| Tensile Strength | DIN 53504S1 | N/mm² | 10,3 |
| Elongation at Break | Din 53504S1 | % | 600 |
| Tear Resistance | ASTM D624 B | N/mm² | 25 |
| Impact Resistance | DIN 53512 | % | 60 |
| Compression Set | DIN ISO 815-B (22h/175°C) | % | 20 |
Additional information
| Color | Translucent |
|---|---|
| Length | 5, 10, 25 |
