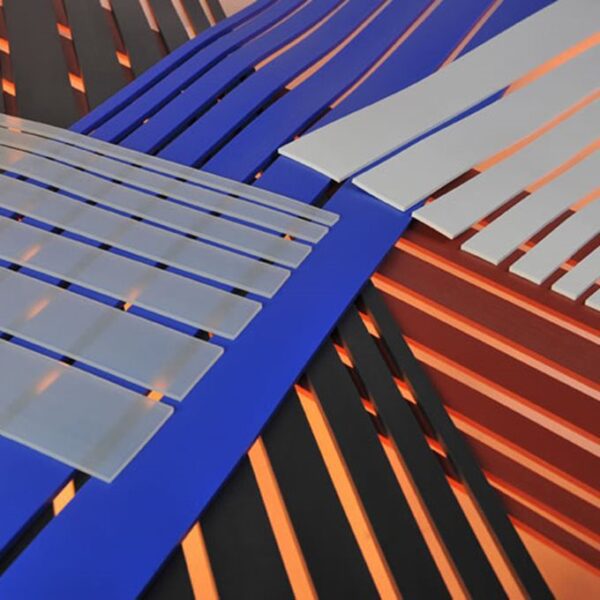

Silicone Rubber Strip (40° Shore)
Silicone rubber strip in 40° Shore A hardness. Excellent for applications requiring good sealing properties at high and low temperatures.
These square sections are suitable for use from -60°C up to +230°C with capabilities at 250°C intermittently.
Fully compliant to FDA 177.2600 and EC 1935/2004, making it suitable for applications requiring direct food contact. Stocked in translucent, more colours and sizes are available on request.
Orders with a thickness of 8mm upwards are delivered in 5m lengths
- Description
- Additional information
- Product Enquiry
Description
| GP20 | GP 30 | GP 40 | GP 50 | GP 60 | GP 70 | GP 80 | |||
|---|---|---|---|---|---|---|---|---|---|
| Property | Units | Typical Value | Typical Value | Typical Value | Typical Value | Typical Value | Typical Value | Typical Value | Test Method |
| Hardness | Shore A ±5 | 20° | 30° | 40° | 50° | 60° | 70° | 80° | DIN ISO 7619-1 |
| Tensile Strength | Mpa (PSI) | 10,1 (1464) | 8.0 (1150) | 9.0 (1300) | 9.0 (1300) | 10.0 (1450) | 10.0 (1450) | 7.0 (1015) | ISO 37 type 2 |
| Elongation to Failure | % | 979 | 500 | 525 | 450 | 400 | 320 | 215 | ISO 37 type 2 |
| Tear Strength | N/mm (lb./in.) | 25,0 (142) | 16.0 (91) | 23 (130) | 18 (100) | 22 (125) | 20 (115) | 17 (88.5) | ASTM D624 die B |
| Compression Set 24 Hrs @ 150°C | % | 23 | 23 | 25 | 15 | 13 | 9 | 18 | DIN/ISO 815 type B |
| Compression Set 22 Hrs @ 300°F | % | - | 20 | 22 | 16 | 10 | 10 | 16 | ASTM D395 method B type 2 |
Additional information
| Color | Translucent |
|---|---|
| Width | 10mm, 12mm, 15mm, 20mm, 25mm, 30mm, 35mm, 40mm, 45mm, 50mm, 55mm, 60mm, 65mm, 70mm, 75mm 80mm, 85mm, 90mm, 95mm, 100mm |
| Thickness | 1mm, 1.5mm, 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm |
| Adhesive Backing | Yes, No |
